Door

The door frames for both hinged and sliding doors are always made of 1.5mm-thick brushed stainless sheet.
Door wings are always made of 1mm-thick stainless sheet.

Surface treatment
– colour powder coating
– brushed stainless steel

The door wings are supplied either full or glassed. The glassed ones can be equipped with magnetically or electrically-controlled blinds.
The door wings can be equipped with radiation protection – Pb sheet, Pb glass.
Door fittings are always from stainless steel.

Hinged Door

The hinged door can be single-wing or double-wing. The standard passing-height is 2,100 mm above the floor level – the line of separation of lower and upper wall panels.
While using an automatic door drive, elbow switches are installed on both sides of the door.
The door wings can be equipped with an infrared safety sensor.

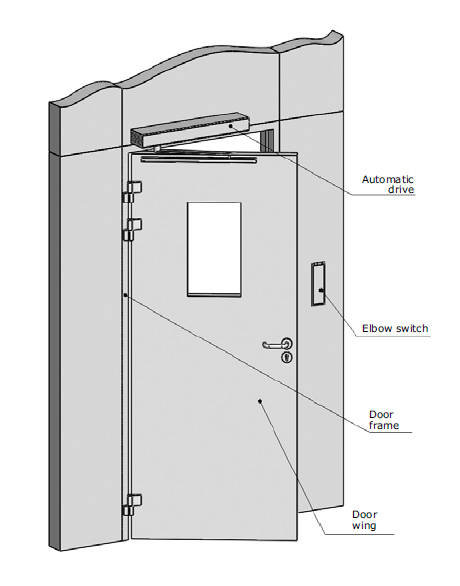

Single-wing door:

Dimensions of the door wing with an automatic drive:
700 mm - 1100 mm

Dimensions of the door wing of the hand-opening door:
700 mm -1100 mm

The passing opening of the door is the width of the door wing deducted by 80 mm.

The maximum dimension of the door can be lowered on the basis of the required radiation protection (the door weight). If this is the case, consultation is necessary.

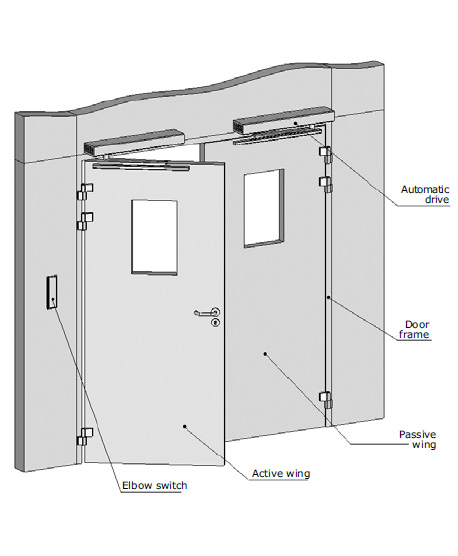

Double -wing door:

In places where it is not possible to use the sliding door due to the required space and where higher passing-width is needed, this solution can be used.

The dimensions of individual door wings with an automatic drive: 700 mm -1,100 mm.
The passing opening of the door is the width of the sum of the door wings deducted by 80 mm.

Sliding Door

It is the optimal option for operating theatres where door wings do not interfere with the room space.
The sliding door is normally supplied with an automatic door drive which provides reliable, quiet and fully-automated operation. For possible manual opening, they are equipped with a robust double- -sided stainless handle. The standard passing height of the door is 2,045 mm.
The upper edge of the door frame is at the height of 2,100 mm above the floor level – the line of the separation of the lower and upper wall panels.
The place of the door wing stop on the door frame is covered with a silicone profile.
For automatic operation of the sliding door, some functions can be set – nurse/patient (full or partial opening of the door) and various additional functions.
In order to secure the highest possible comfort, it is possible to use various setting options of the door as well as the ways of their opening.

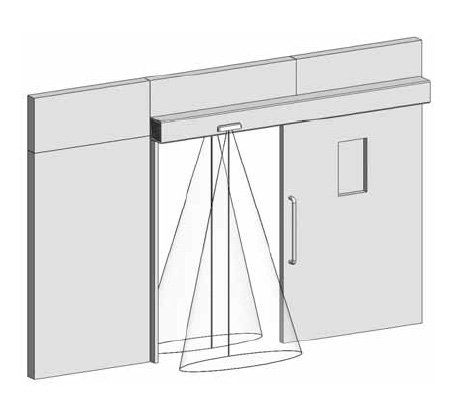

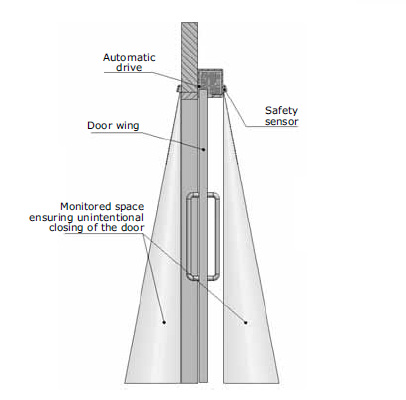

Since the safety of patients and staff is the priority, in addition to the standard safety functions, the door is always equipped with a pair of safety sensors which prevents unintentional closing of the door.

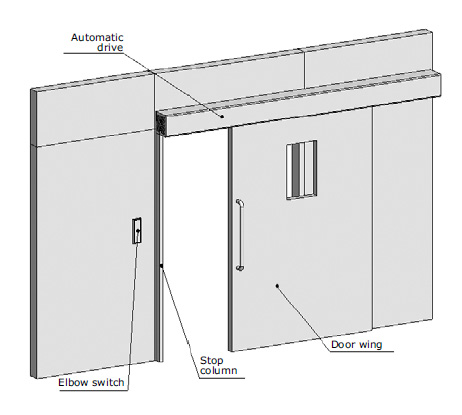

Single-wing door:

The maximal dimension of the door wing is 1,400 mm.

The passing-hole of the door is the door wing width deducted by 150 mm.

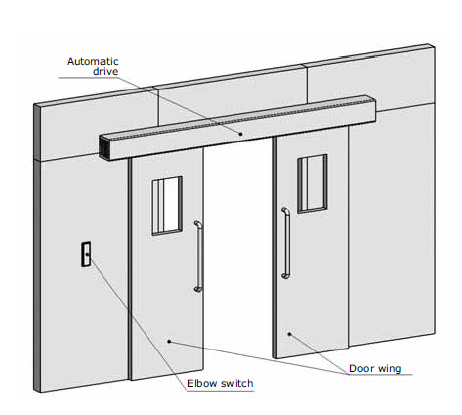

Double-wing door:

The maximal dimension of each door wing is 1,400 mm.

The passing-hole of the door is the sum of the door wing widths deducted by 300 mm.
